| P/N | CA-1O3-00M1WN-00 |
| SERIES | S Series |
| MODEL | S500 TG |
| CASE TYPE | Middle Tower |
| DIMENSION (H X W X D) | 565 x 240 x 500 mm (22.2 x 9.4 x 19.7 inch) |
| NET WEIGHT | 15.04 kg / 33.15 lbs. |
| SIDE PANEL | 4mm Tempered Glass x 1(Left) |
| COLOR | Exterior & Interior: Black |
| MATERIAL | SPCC |
| COOLING SYSTEM | Rear (exhaust): 120 x 120 x 25 mm fan (1000rpm, 16 dBA) Front (intake): 140 x 140 x 25 mm fan (1000rpm, 20dBA) |
| DRIVE BAYS -ACCESSIBLE -HIDDEN |
2.5” x 2 or 3.5”x 2 (HDD Rack) 2.5”x 1(HDD Bracket); 2.5” x 2 or 3.5” x 1(HDD Bracket) |
| EXPANSION SLOTS | 8 |
| MOTHERBOARDS | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) |

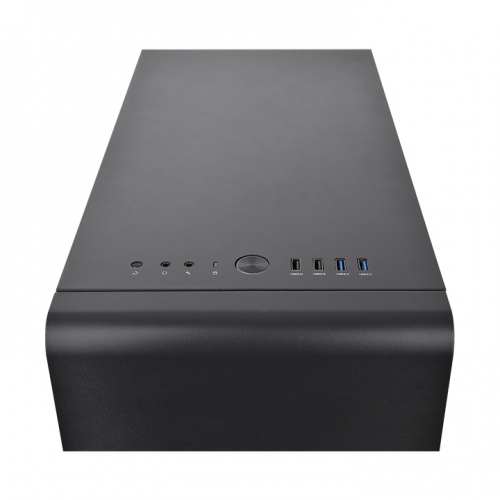

| I/O PORT | USB 3.0 x 2, USB 2.0 x 2, HD Audio x 1, Reset Button x 1 |
| PSU | Standard PS2 PSU (optional) |
| FAN SUPPORT | Front: 3 x 120mm, 3 x 140mm, 2 x 200mm Top: 3 x 120mm, 2 x 140mm, 2 x 200mm Rear: 1 x 120mm |
| RADIATOR SUPPORT | Front: 1 x 360mm, 1 x 420mm Top: 1 x 280mm, 1 x 360mm Rear: 1 x 120mm Right: 1 x 360mm (Without HDD Rack) |
| CLEARANCE | CPU cooler height limitation: 172mm VGA length limitation: 282mm(With HDD Rack) 400mm(Without HDD Rack) PSU length limitation: 220mm |
