Specifications
Model No. | SST-PF240W-ARGB SST-PF240W-ARGB-V2 |
|
Application | Intel Socket LGA775/115X/1200/1366/2011/2066 AMD Socket AM2/AM3/AM4/FM1/FM2 To buy LGA1700 bracket for your SilverStone CPU cooler, please click here. (V2) |
|
Water block | Dimension | 61mm (L) x 61mm (W) x 50mm (H) 2.4″ (L) x 2.4″ (W) x 1.97″ (H) |
Material | Copper base with plastic body | |
Radiator | Dimension | 272mm (L) x 120mm (W) x 28mm (H) 10.71″ (L) x 4.72″ (W) x 1.1″ (H) |
Material | Aluminum | |
Tube | Length | 400mm |
Material | Rubber | |
Pump | Motor speed | 3400±10% RPM |
Rated Voltage | 12V | |
Rated Current | 0.39A | |

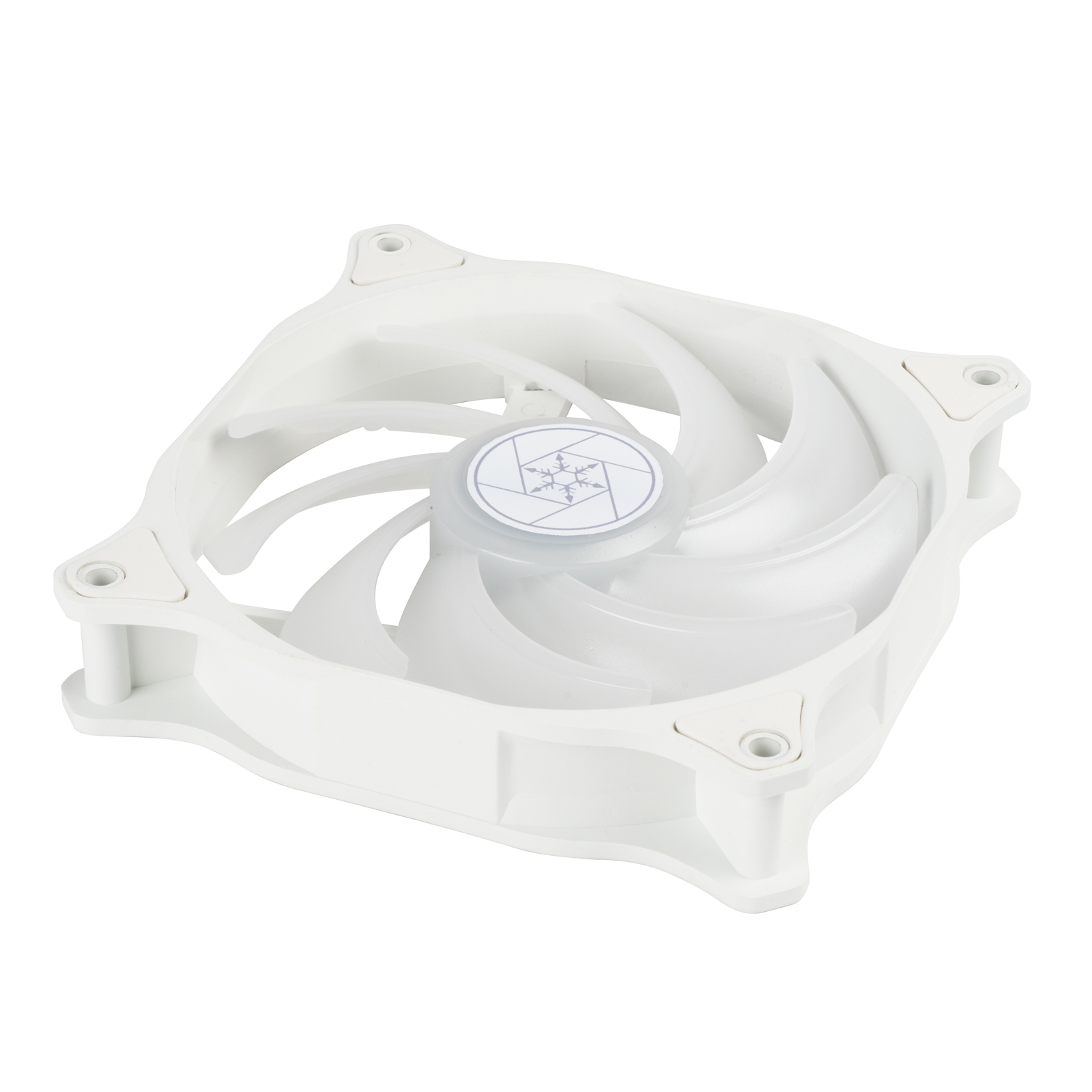

Fan | Dimension | 120mm (L) x 120mm (W) x 25mm (D) 4.72″ (L) x 4.72″ (W) x 0.98″ (D) |
Speed | 600~2200RPM | |
Max airflow | 94CFM | |
Pressure | 3.53mm/H2O | |
Noise level | 7.4~35.6 dBA | |
Rated Voltage | 12V | |
Rated Current | 0.32A | |
Connector | 4 Pin PWM & 4-1 Pin ARGB (5V LED) |
* Please check to make sure the control box and motherboard RGB port that you want to connect are the same as PF240W-ARGB’s RGB port definition. Incorrect connection may cause malfunction or damage. |
